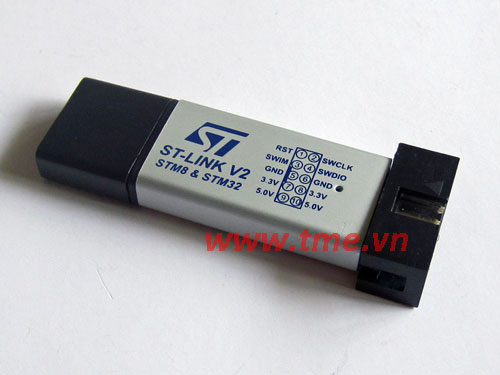

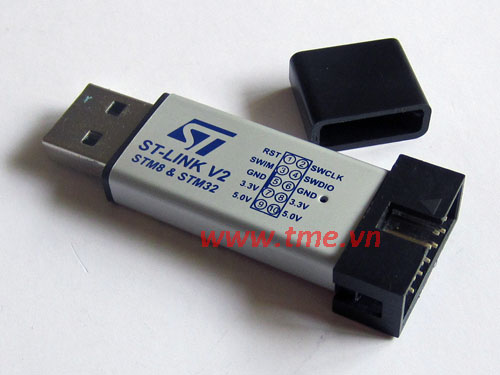

ST-Link-V2 Mini
STM8 and STM32 Programmer (Update 24/08/2023)
Part No.:  ST-Link-V2 Mini
Date added::  22/12/2013
Origin:  Vietnam
Category:  Debugger / Programmer
Pricing:
Quantity (pcs)1 - 9 10 - 24 25+
Unit price (USD) 7.50 7.25 7.00
Product Unit:  pcs
In stock:  48 pcs
Views:  19230
Quantity:
  1. Product information
  2. Products related
  3. Products equivalent
ST-Link-V2 Mini  Mạch nạp STM8 và STM32

Description:

Function:
  1. Supports the full range of STM32 SWD interface for download and debugging, simple 4 wire interface (including power supply), fast speed, stable work;
  2. Supports the full range of STM8 SWIM download and debug (common development environments such as IAR, STVD and so on are supported); support software version is as follows:
    •  ST-LINK Utility 2 and above
    •  STVD 4.2.1 and above
    •  STVP 3.2.3 and above
    •  IAR EWARM V6.20 and above
    •  IAR EWSTM8 V1.30 and above
    •  KEIL RVMDK V4.21 and above
  3. Support firmware upgrade automatically, to ensure that the product of ST company follow-up support. The factory firmware has been upgraded to the latest V2.J17.S4;
  4. Small, beautiful, convenient, annotations right on luxury aluminum box.

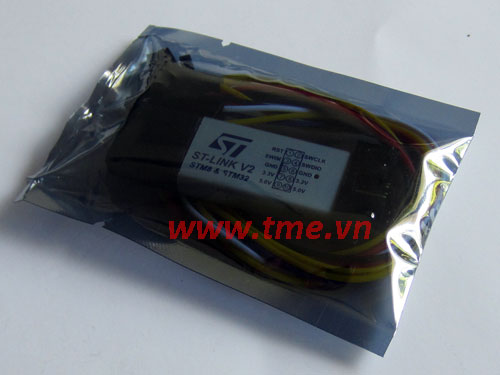

Package Included:
  1. 1 x ST LINK V2
  2. 4 x 30cm debugging DuPont line
